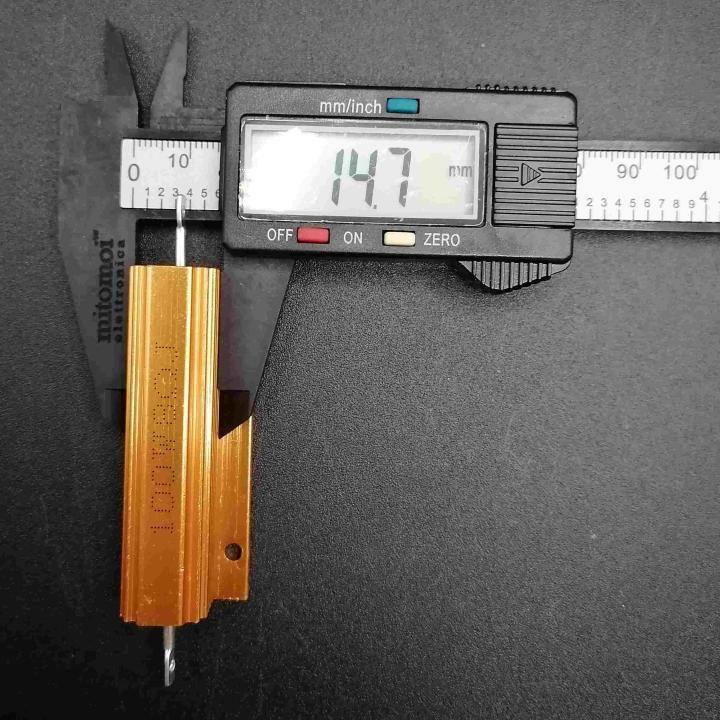

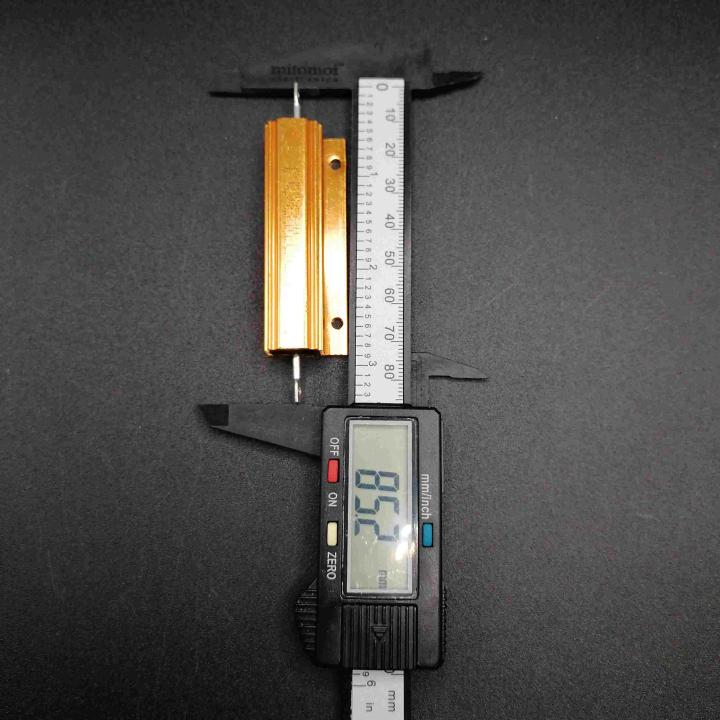

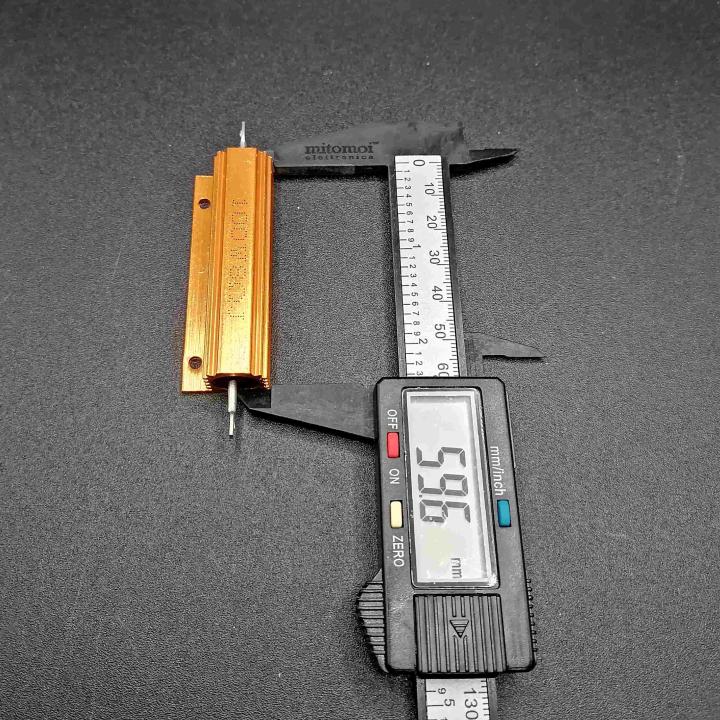

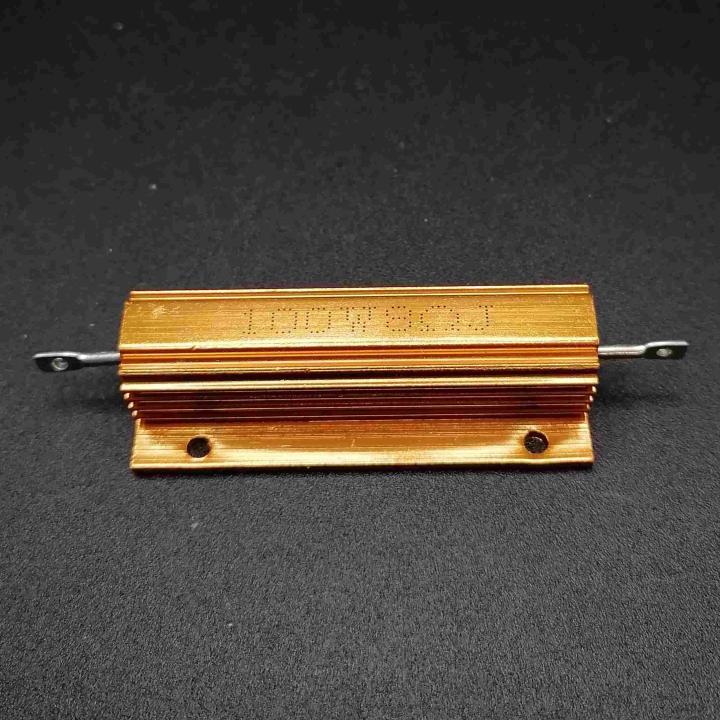

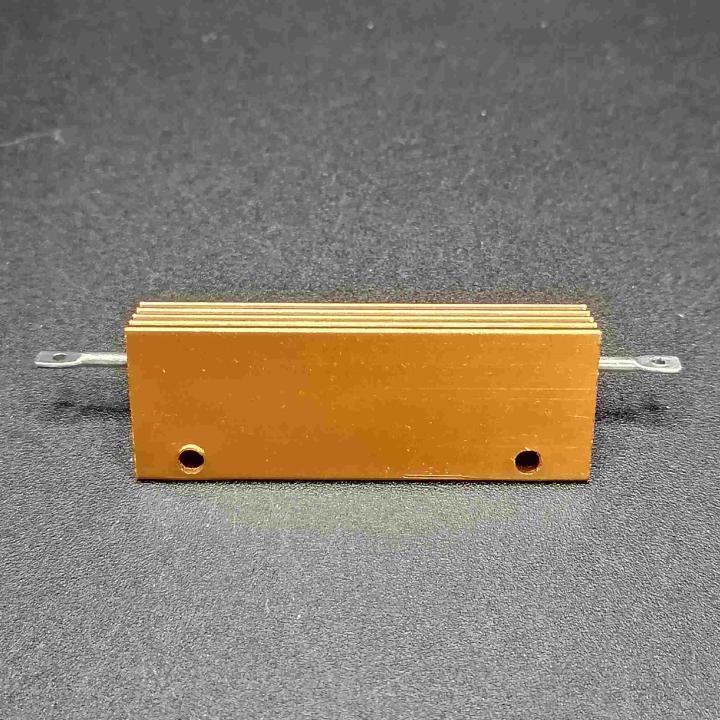

Armored resistor, 100W, 8 ohm, aluminum body with fins, 85x21x15mm

Foto nostre o del produttore, verificate sul prodotto reale. L'aspetto può variare, funzioni e caratteristiche tecniche no.

Armored resistor, 100W, 8 ohm, aluminum body with fins, 85x21x15mm

Name: Armored resistor, 100W, 8 ohm, aluminum body with fins, 85x21x15mm
Brand: OEM
SKU: MIC2870IT
Price: 4.55 EUR
Availability: InStock

OEM

Codice mepa: MIC2870IT

Posizione: C2

Quantità disponibili: 8

€4.55

Tax included

Scarica scheda PDF con prezzo

Armored resistor, 100 W, 8 Ω, aluminum with fins, 85 x 21 x 15 mm.

Quantity	Unit price	You Save
2	€4.41	€0.27
3	€4.28	€0.82
5	€4.10	€2.28

Need technical help?If the information on this page isn’t enough, or you’d like advice on wiring, operation or integrating it into your project, write to us: our technical team will reply.

This 100W, 8Ω armored resistor is designed to provide high power dissipation capacity. With its aluminum body and cooling fins, it is suitable for industrial applications and power circuits. Its compact dimensions of 85x21x15 mm make it versatile and easy to install.

Key features

Rated power: 100W
Resistance value: 8Ω (8 Ohm)
Body material: Armored aluminum
Tolerance: ±5%
Type: Wire-wound resistor with cooling fins
Dimensions: 85x21x15 mm
Connections: Threaded terminals for secure connections

Technical specifications

Rated power: 100W
Resistance: 8Ω
Tolerance: ±5%
Material: Armored aluminum with fins Dimensions: 85x21x15 mm
Insulation: High insulation resistance
Operating temperature: -55°C to +200°C
Mounting: Can be fastened to metal surfaces to improve heat dissipation

Applications

Resistive braking for electric motors
Test load for power supplies and power circuits
Power dissipation in industrial applications
Current limiting in protection circuits

Advantages of the armored resistor

High heat dissipation capacity thanks to the aluminum body and cooling fins
Mechanical sturdiness for demanding environments
Safe electrical insulation to prevent short circuits
Easy mounting thanks to the threaded terminals
