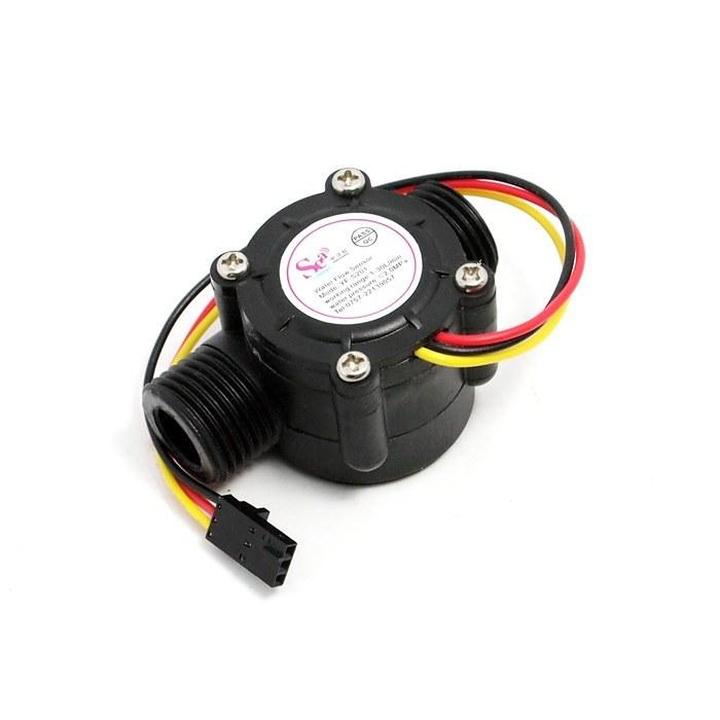

Water flow sensor G1/2" ZJ-S201 Hall effect, plastic DN15, 1–30 l/min, 5–24 V DC – Seeed Studio 314150005

Key features

• Plastic valve body with internal rotor and Hall-effect sensor: the water spins the rotor, whose speed changes with the flow rate, and the sensor outputs the corresponding pulse signal
• G1/2" (DN15) double male connections
• Compact and easy to install
• High sealing performance, water pressure up to 1.75 MPa
• RoHS compliant

Technical specifications

• Model: ZJ-S201
• Connections: G1/2", DN15, double male
• Working voltage: 5–24 V DC (minimum 4.5 V)
• Max. current: 15 mA at 5 V
• Output load: up to 10 mA at 5 V
• Flow rate: 1–30 l/min
• Output: pulse signal (Hall-effect sensor)
• Water pressure: up to 1.75 MPa
• Liquid temperature: up to 120 °C
• Operating temperature: up to 80 °C
• Operating humidity: 35–90% RH
• Storage temperature: -25 to +80 °C
• Storage humidity: 25–95% RH
• Material: plastic

Typical uses

Water flow measurement in dispensers, coffee machines, irrigation systems and microcontroller-controlled water circuits.

Package contents

• 1 G1/2" ZJ-S201 water flow sensor
