Grove Shield for Raspberry Pi Pico, 10 Grove connectors, SPI and SWD, 3.3/5 V selector – Seeed Studio 103100142

Foto nostre o del produttore, verificate sul prodotto reale. L'aspetto può variare, funzioni e caratteristiche tecniche no.

Grove Shield for Raspberry Pi Pico, 10 Grove connectors, SPI and SWD, 3.3/5 V selector – Seeed Studio 103100142

Name: Grove Shield for Raspberry Pi Pico, 10 Grove connectors, SPI and SWD, 3.3/5 V selector – Seeed Studio 103100142
Brand: Seeed Studio
SKU: MIC16668IT
Price: 6.2 EUR
Availability: InStock

Seeed Studio

Codice mepa: MIC16668IT

Quantità disponibili: 220

€6.20

Tax included

Made to order ships in 5–10 working days

Scarica scheda PDF con prezzo

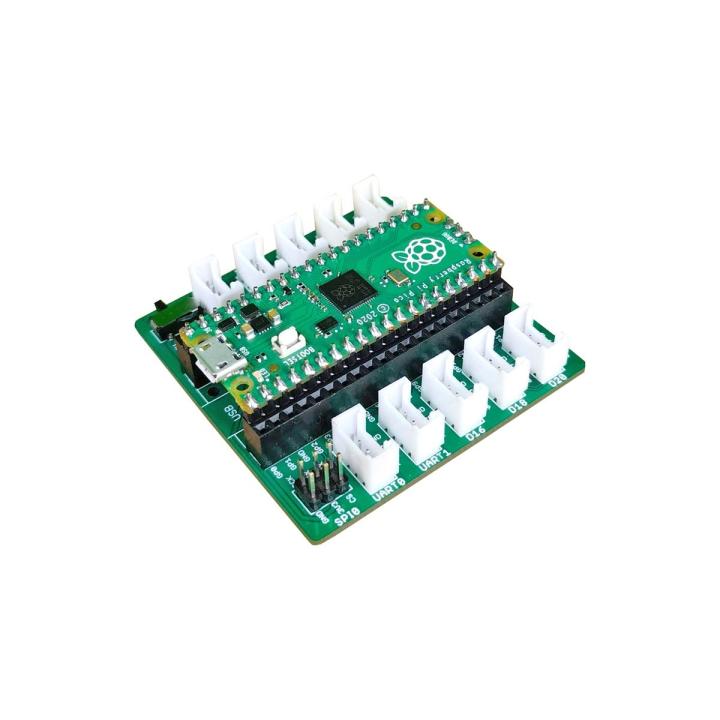

Expansion board for Raspberry Pi Pico that breaks out every pin on female headers and adds 10 Grove connectors, an SPI port, an SWD debug interface and a voltage selector.

Made to order: ships in 5–10 working days

5–10 working days

Terms for made-to-order products

Made-to-order product: ships in 5–10 working days.
Shipping to Italy €6.50, free from €80.00; other EU countries: flat rate €15.00.

Need technical help?If the information on this page isn’t enough, or you’d like advice on wiring, operation or integrating it into your project, write to us: our technical team will reply.

Breaks out all pins and power of the Raspberry Pi Pico on full female headers
10 Grove connectors: 2 I2C, 2 UART, 3 digital and 3 analog
SPI0 port, SWD debug interface and 3.3 V / 5 V power switch
The two inner female header rows take a Pico with pre-soldered pins, the two outer rows break out the standard pins
Programmable with MicroPython and Arduino

Technical specifications

Analog ports: 3 (A0, A1, A2)
Digital ports: 3 (D16, D18, D20)
UART ports: 2
I2C ports: 2
SPI port: 1 (SPI0)
Debug: SWD interface
Voltage: 3.3 V / 5 V (switch selectable)
Operating temperature: -25 to +85 °C
Dimensions: 56 × 56 mm

Typical uses

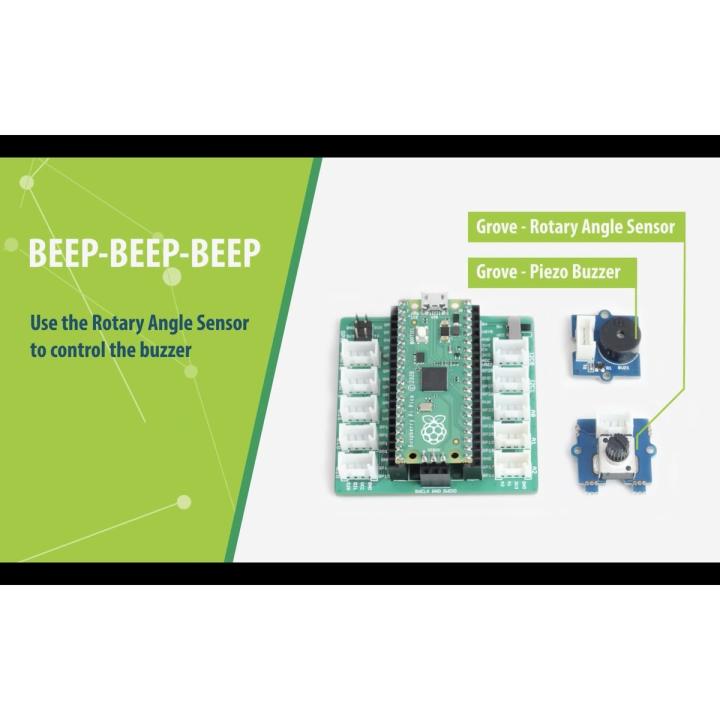

Projects with Grove sensors, education with the Raspberry Pi Pico, SWD debugging, fast prototyping, wearables and smart control. Raspberry Pi Pico not included.

Package contents

1 Grove Shield for Pi Pico v1.0
