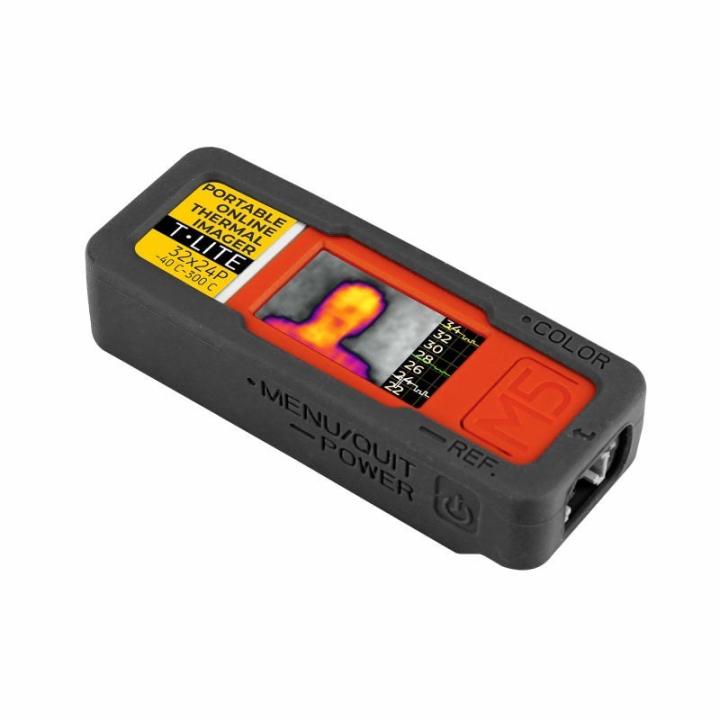

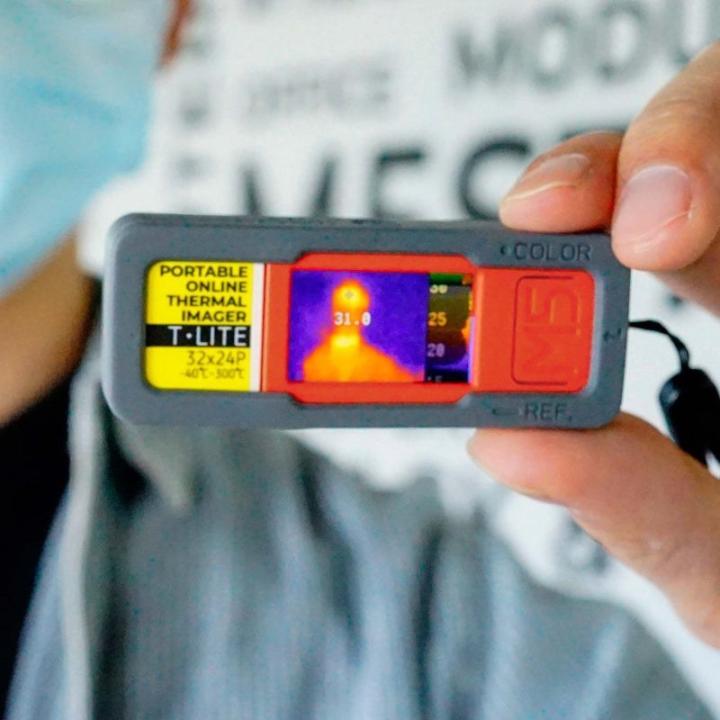

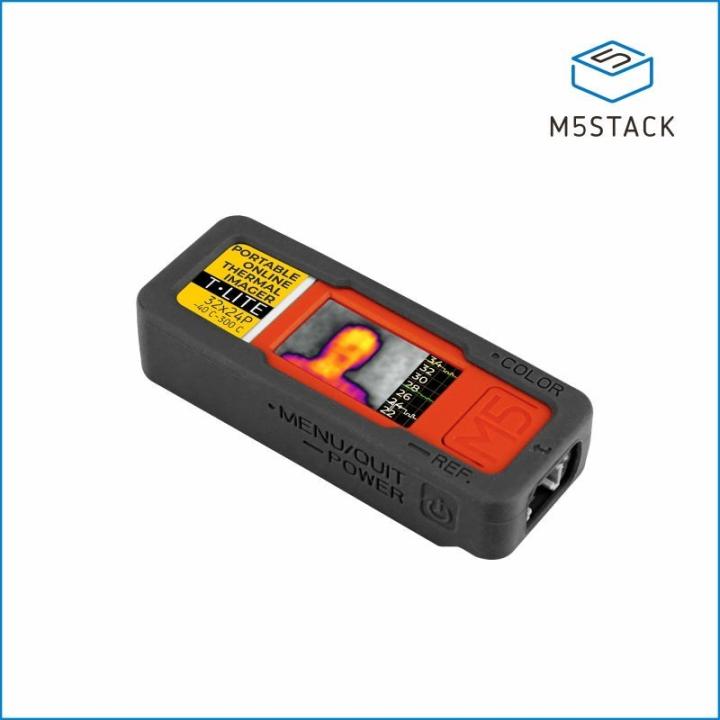

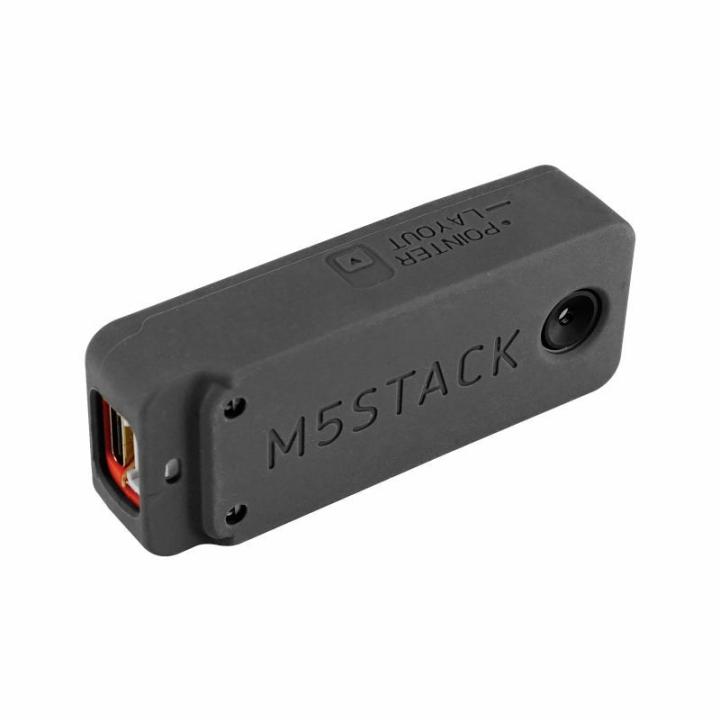

T-Lite thermal camera with M5StickC Plus and MLX90640 32 × 24 sensor, 110° × 75° FOV, Wi-Fi, 1.14" LCD, battery – M5Stack K126

Key features

• Consists of M5StickC Plus (ESP32-PICO-D4 at 240 MHz, Wi-Fi) and HAT THERMAL with MLX90640-BAA infrared sensor
• 32 × 24 thermal image, 110° × 75° field of view, measuring range -40 to 300 °C
• 1.14 inch colour TFT display, 135 × 240 pixels
• Adjustable high temperature alarm and built-in passive buzzer
• Thermal images and temperature data viewable in real time over the local network and via cloud; remote data access through the EZData online API
• User button, power/reset button and 160 mAh lithium battery

Technical specifications

• Microcontroller: ESP32-PICO-D4, dual-core 240 MHz, 600 DMIPS, 520 KB SRAM
• Flash memory: 4 MB
• Sensor: MLX90640
• Field of view: 110° × 75°
• Thermal resolution: 32 × 24
• Measuring range: -40 to 300 °C
• Display: 1.14 inch colour TFT, 135 × 240 pixels, ST7789V2
• Microphone: SPM1423
• Buzzer: passive
• PMU: AXP192
• Power supply: 5 V, 500 mA, USB Type-C
• Battery: 160 mAh, 3.7 V
• Dimensions: 69 × 26.6 × 16.4 mm
• Net weight: 31 g

Typical uses

Temperature detection and alarm, monitoring of thermal anomalies in circuits, non-contact temperature measurement, motion detection and infrared image visualisation.

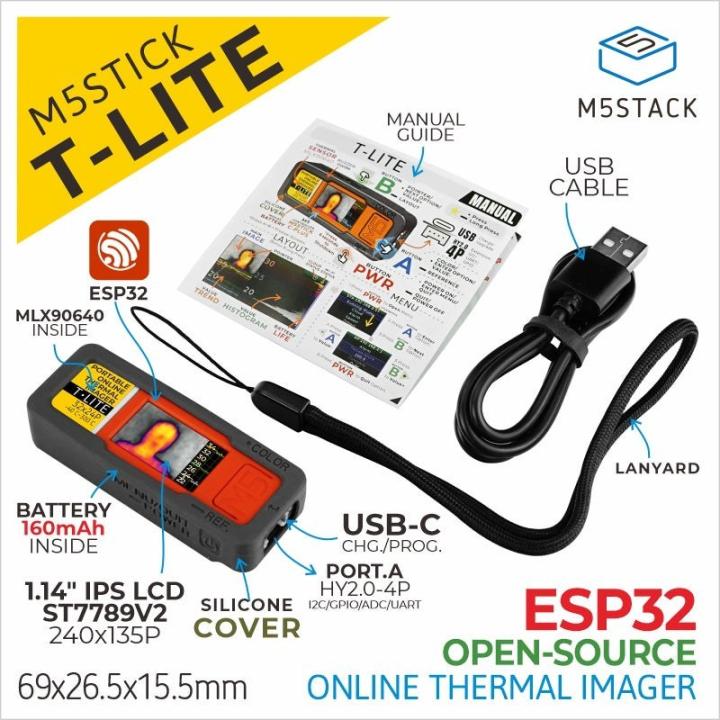

Package contents

• 1 × T-Lite
• 1 × M5StickC Plus
• 1 × lanyard
• 1 × USB Type-C cable, 50 cm
• 1 × user manual
