Key features
- 16-bit ADS1110 analog-to-digital converter
- Programmable gain amplifier (PGA) 1, 2, 4 or 8, with continuous self-calibration: suitable for weak signals too
- Internal voltage reference 2.048 V ± 0.05%
- Low noise: 10 µVpp
- Conversion at 15, 30, 60 or 240 samples per second
- I2C communication, signal input on 2-pin HT3.96 terminal
Technical specifications
- Converter: ADS1110, 16-bit
- PGA gain: 1, 2, 4 or 8
- Input voltage: 0–12 V DC
- Internal reference: 2.048 V ± 0.05%
- Noise: 10 µVpp
- Temperature drift: 5 ppm/°C
- Integral non-linearity (INL): 0.01% of full scale (max)
- Interface: I2C (address 0x48)
- Operating temperature: 0–40 °C
- Connector: Grove 4 pin (HY2.0-4P)
- Dimensions: 32.0 × 24.0 × 10.2 mm
- Net weight: 4.5 g
Typical uses
Industrial process control, temperature measurement, factory automation, portable instruments and smart transmitters.
Package contents

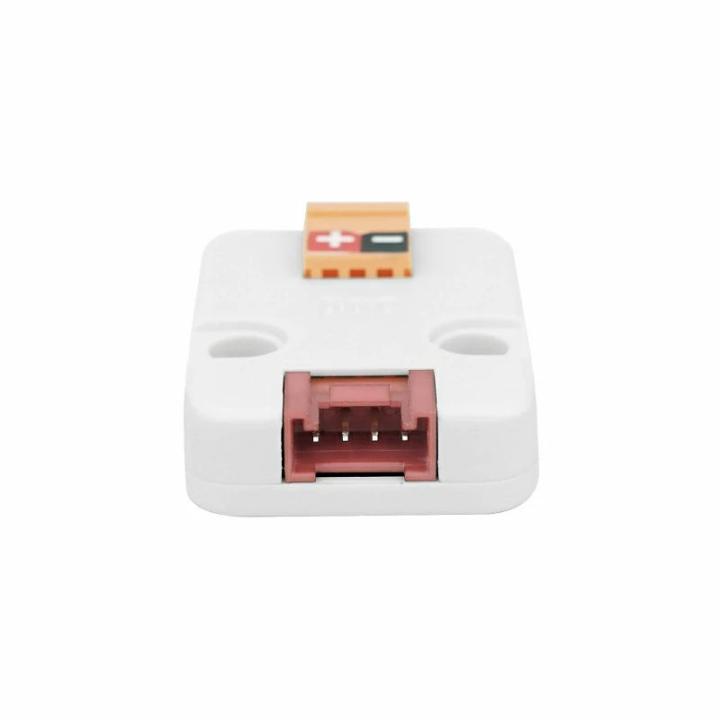

- 1 × Unit ADC v1.1
- 1 × HY2.0-4P Grove cable (20 cm)
- 1 × HT3.96 2-pin terminal
