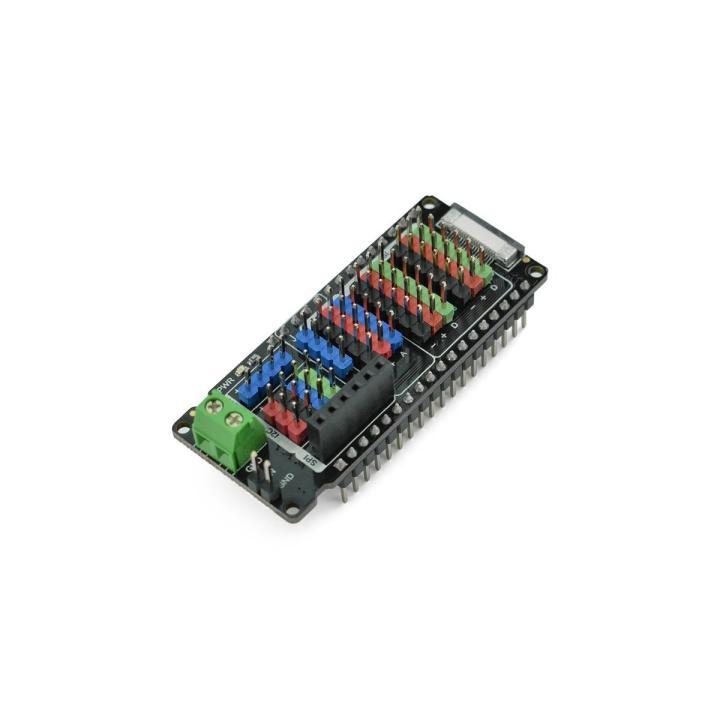

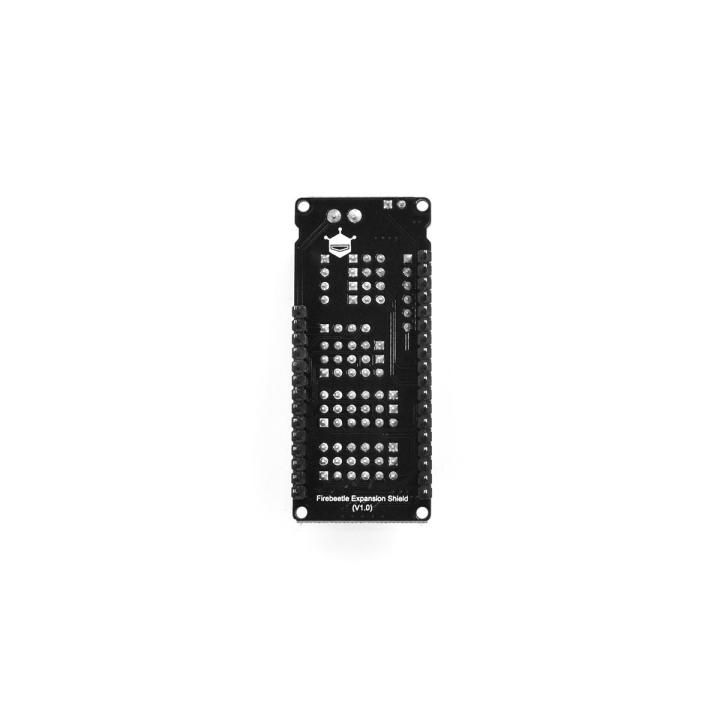

Gravity I/O expansion shield for FireBeetle 2 ESP32-E and M0, all pins broken out, GDI port – DFRobot DFR0762

Foto nostre o del produttore, verificate sul prodotto reale. L'aspetto può variare, funzioni e caratteristiche tecniche no.

Gravity I/O expansion shield for FireBeetle 2 ESP32-E and M0, all pins broken out, GDI port – DFRobot DFR0762

Name: Gravity I/O expansion shield for FireBeetle 2 ESP32-E and M0, all pins broken out, GDI port – DFRobot DFR0762
Brand: DFROBOT
SKU: MIC13907IT
Price: 7.9 EUR
Availability: InStock

DFROBOT

Codice mepa: MIC13907IT

Quantità disponibili: 8

€7.90

Tax included

Made to order ships in 5–10 working days

Scarica scheda PDF con prezzo

Expansion board for FireBeetle 2 controllers (ESP32-E and M0) that breaks out every pin and connects Gravity sensors and modules without soldering.

Made to order: ships in 5–10 working days

5–10 working days

Terms for made-to-order products

Made-to-order product: ships in 5–10 working days.
Shipping to Italy €6.50, free from €80.00; other EU countries: flat rate €15.00.

Need technical help?If the information on this page isn’t enough, or you’d like advice on wiring, operation or integrating it into your project, write to us: our technical team will reply.

Designed for the FireBeetle 2 series (ESP32-E and M0); not suitable for the original FireBeetle series
All pins broken out onto female headers: no soldering required
Digital, analogue, I2C, UART and SPI ports for Gravity sensors and modules
3.3–5.5 V PH2.0 power socket for portable projects
EN pin to cut power to the main board
GDI interface for DFRobot GDI-series displays

Technical specifications

Digital I/O: 12 (GP0–3, GP5–7, GP9–13)
Analogue I/O: 5 (A0–A4)
UART: 1
I2C: 3 (in parallel)
SPI: 1
PH2.0 power socket: 3.3–5.5 V
Display interface: GDI
Dimensions: 60 × 25.4 mm
Compatibility: FireBeetle 2 ESP32-E, FireBeetle 2 M0

Typical uses

Quick connection of Gravity sensors and actuators to FireBeetle 2 controllers in IoT projects, battery-powered portable devices and prototypes with displays.

Package contents

1 × Gravity I/O expansion shield for FireBeetle 2 (ESP32-E and M0)
