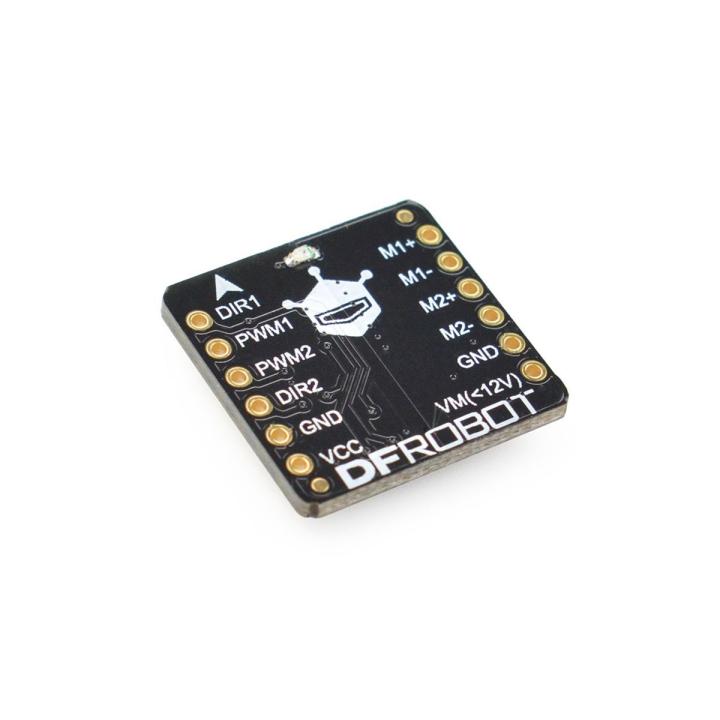

Dual DC motor driver TB6612FNG 2 × 1.2 A, 2.5–12 V motors, 4-pin control, Fermion – DFRobot DRI0044

Key features

• Dual H-bridge for two independent DC motors
• Control with just 4 pins: saves two GPIOs compared to using the chip directly
• Control logic compatible with code written for DFRobot L298N drivers
• XH2.54 pins fit directly into a breadboard

Technical specifications

• Chip: TB6612FNG
• Logic voltage (VCC): 2.7–5.5 V
• Motor voltage (VM): 2.5–12 V
• Channels: 2
• Continuous output current: 1.2 A per channel
• Peak current: 2 A (continuous pulse) / 3.2 A (single pulse)
• Dimensions: 20 × 19.5 mm

Typical uses

Small two-wheeled robots and vehicles, self-balancing robots, micro DC motors in DIY projects and prototypes with Arduino.

Package contents

• 1 × TB6612FNG DC motor driver
• 2 × XH2.54 6-pin headers
